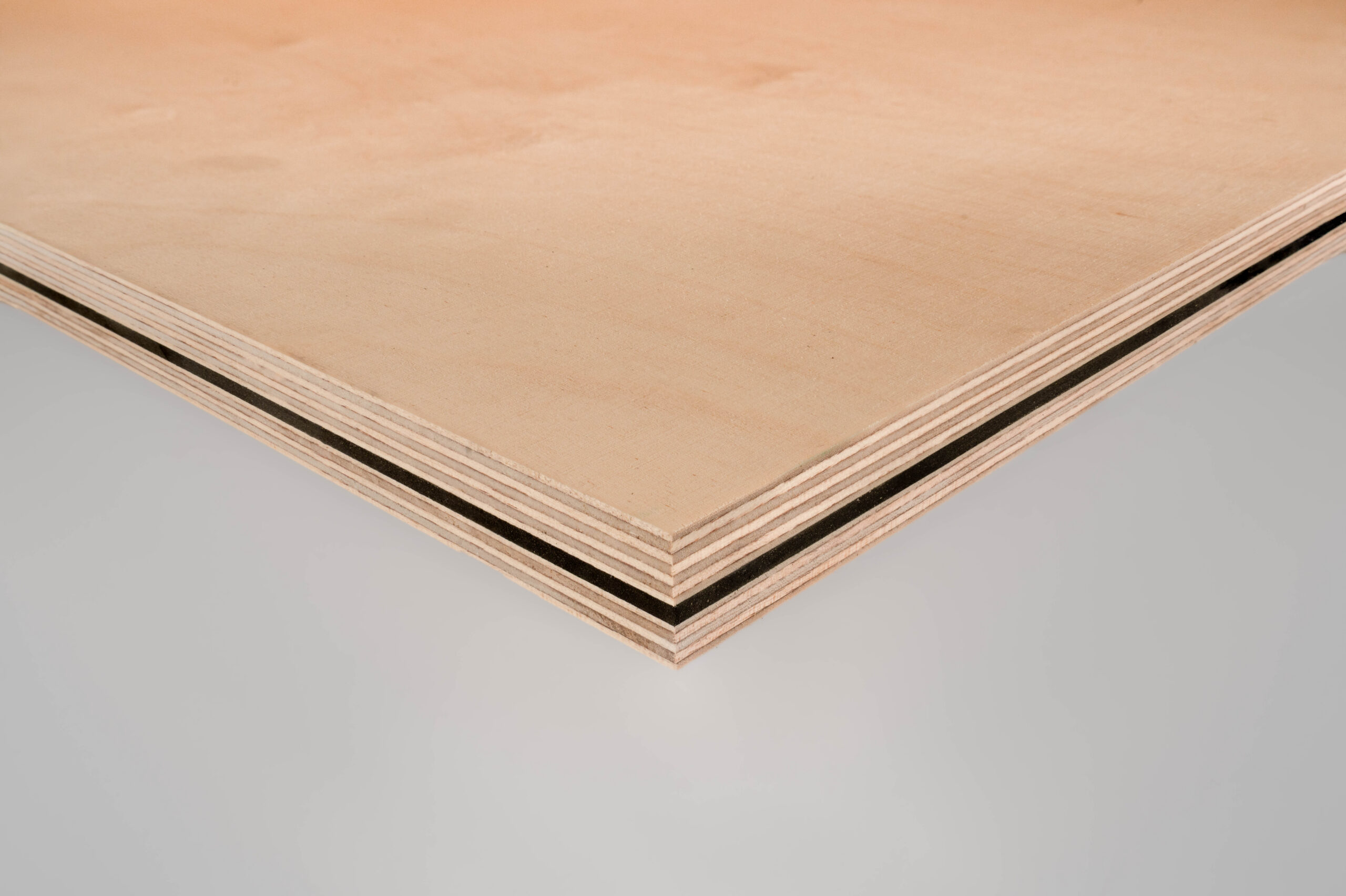

ESTPLY® MUTE
Birch plywood sandwich panel featuring a 3 mm rubber layer for enhanced sound reduction. Designed for interior applications such as walls, ceilings, floors, and use in the transportation industry.
- Effective noise damping
- Dimensional stability
- Easy to process and install
- Environmentally friendly
Standard dimensions
1500/1525 × 2500/3000/3050 mm
Nominal thickness
11–24 mm
Density
930-1020 kg/m³ (depending on thickness)
Glue
Phenol formaldehyde (WBP)
Emission class
E0.5 (EN 717-1) and ULEF compliant (EPA TSCA Title VI, 40 CFR Part 770)
Standards and certificates
EN 13986 · CE · ISO 9001/14001 · PEFC · FSC
Processing
Cut-to-size
Measurement tolerance
up to 1000 mm ± 1 mm · 1000–2000 mm ± 2 mm · over 2000 mm ± 3 mm
Squareness tolerance
± 1 mm (per 1000 mm)
Edge straightness tolerance
± 1 mm (per 1000 mm)
Areas of use
- Interior: walls, ceilings and floors
- Transport industry: vehicle floors
